3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree

ZIZI ENGINEERING CO.,LTD
Contact Now

3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree

Brand Name : ZZ

Model Number : ASTM A694 F52

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 60000 PCS Per Month

Delivery Time : 5-15 Days

Packaging Details : Cartons and Wooden Cases, LCL, 20ft Container

Material : ASTM A694 F52

Connection : Socket Weld

Products : 90 Degree Socket Weld Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union

Size : 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"

Thickness : 3000 LB, 6000 LB, 9000LB

Standard : ASME B16.11, BS3799

Surface : Anti rust Oil, Galvanized

Packing : Carton and Wooden Case.

Contact Now

3" Socket Weld Cap Class 3000 Carbon Steel ASTM A694 F52 ASME B16.11

Socket Weld Pipe Cap

Hot sale 3" socket weld cap is offered in best price and high quality carbon steel ASTM A694 F52 without quantity and dimension restriction, it is usually in Class 3000 and ASME B16.11 standard.

Carbon Steel Pipe Cap is an essential and necessary fitting that design to stop the flow of small diameter pipelines at the end. A694 F52 Fittings is obvious cost-effective with the high quality and low price. Our products are fully certified and 100% durable.

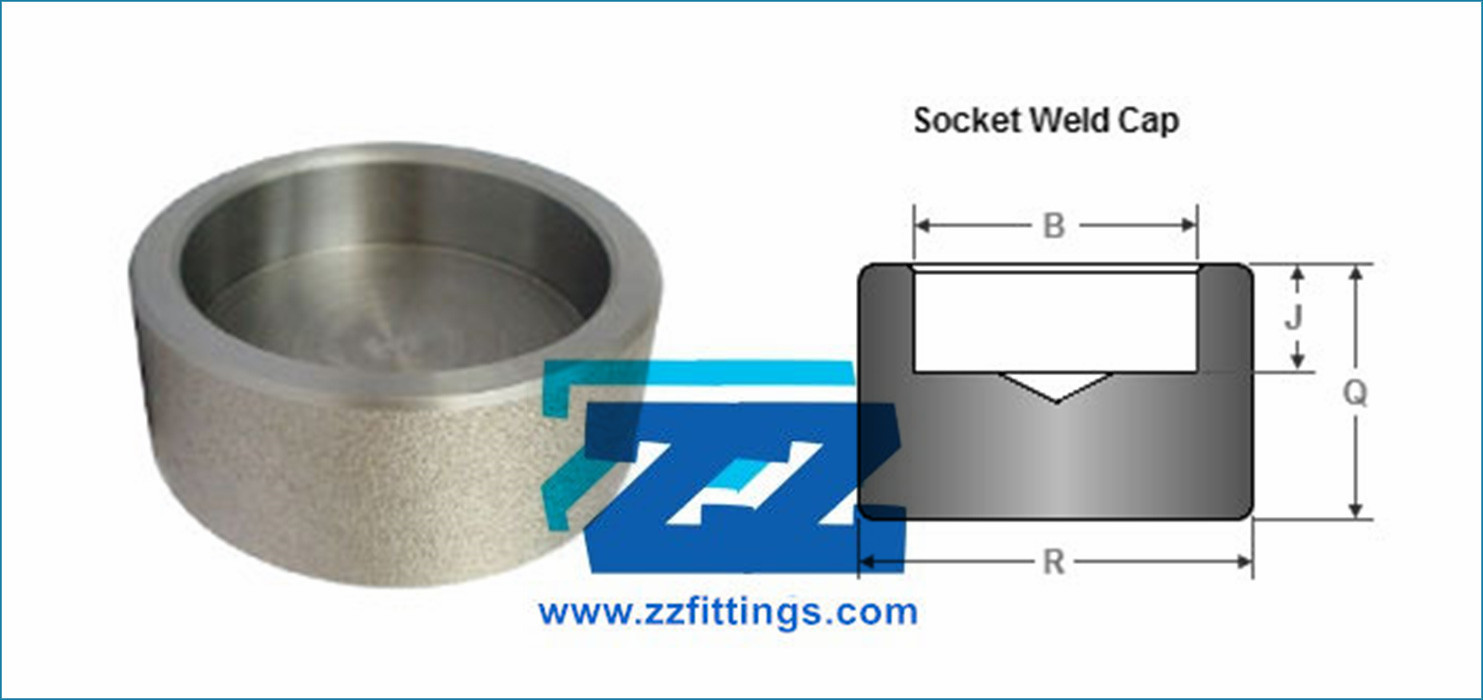

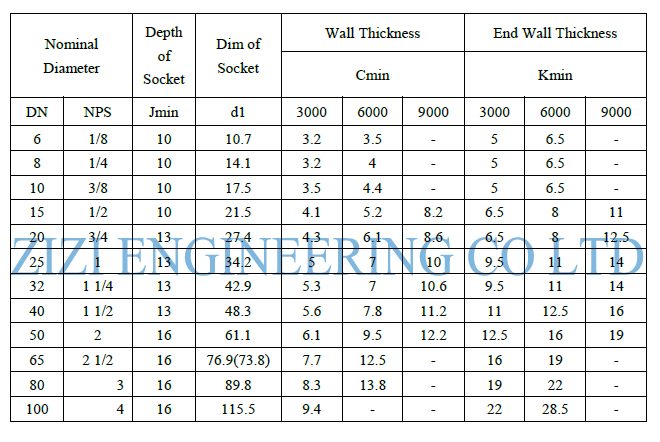

Socket Weld Cap Dimensions

Size NPS 1/8" to 4" / DN 6 to 100
Pressure Rating Class 3000, 6000,9000
Standard ASME B16.11 and BS3799
Surface Anti-rust Oil or Galvanized
Forged Cap Type Scoket Weld Cap, Threaded Cap

3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree

Stainless Steel Socket Weld Cap

ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347

Alloy Steel Socket Weld Fittings

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Carbon Steel Class 3000 Cap

ASTM A105N, A350 LF2, LF3, ASTM A694 F52, F60, F65, F70

Duplex Stainless Forged Cap

ASTM A182 F44, F51, F53, F55, F56, S31803, 32205, 32550, 32750, 32760

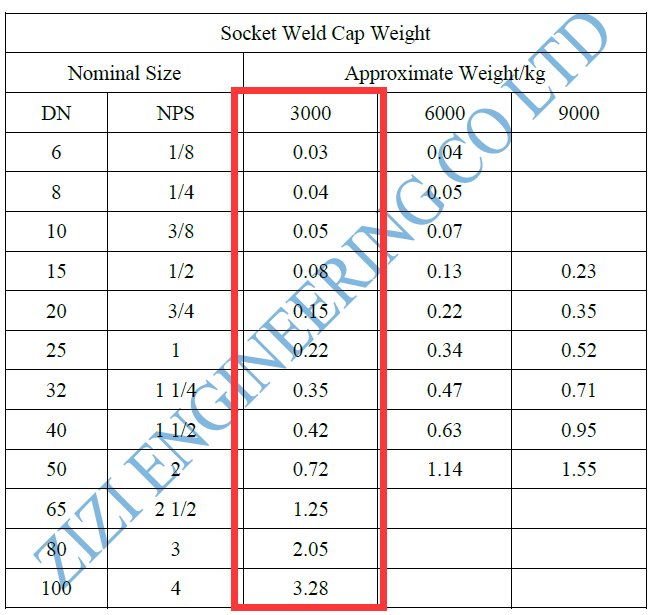

Class 3000 Socket Weld Cap Weight

3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree

3" Forged Pipe Caps

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped forged pipe fittings with plastic foam.
  • Packed Carbon Steel ASTM A694 F52 Pipe Cap into wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree

  1. Visual the surface. Such as dents, die marks, porosity, undercuts.
  2. Check the marking. Such as name,size, material grade, pressure, heat No.
  3. Measure the size. Such as diameter, thickness, height of end to end, socket height.

Why Choose Us?

  • ISO certified quality
  • Abundant stock
  • Attractive price
  • Experience 10 years
  • Export 30 countries

ASTM A694 F52 Chemical Composition

C Si Mn S P Cr Ni Mo
0.3 0.15-0.37 1.5 0.03 0.03 / / /

ASTM A694 F52 Mechanical Properties

Tensile Strength Yield Strength Elongation
415 (Mpa) 315 (Mpa) 20 (%)

Product Tags:

seamless steel pipe fittings



forged threaded fittings


China 3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree wholesale

3" Socket Weld Cap Class Carbon Steel Pipe Fittings ASTM A694 F52 90 Degree Images
