ASTM A105 1 / 2" - 4" Olet Pipe Fittings Carbon Steel Threadolet ASME B16.11

Brand Name : ZZ

Model Number : ASTM A105

Certification : ISO, CE

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 60000 PCS Per Month

Delivery Time : 5-15 Days

Packaging Details : Cartons and Wooden Cases, LCL, 20ft Container

Material : ASTM A105

Connection : NPT Female Thread

Products : Sockolet, Threadolet, Weldolet, Latrolet, Elbolet, Nipolet,

Size : 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″

Pressure : Class 3000, 6000

Standard : MSS SP-97, ASME B16.11

Packing : Plastic Foam, Wooden Cases, Pallets, 20FT Container

Application : Industry, Natural Gas , Petroleum, Gas And Oil Pipes, Chemical

Contact Now

ASTM A105 1 / 2" - 4" Olet Pipe Fittings Carbon Steel Threadolet ASME B16.11

Carbon Steel Threadolet

Carbon steel A105 Threadolet is very popular used becaused the cost advantage and installtion convenience. As a branch outlet fittings it can provide branches which has the same or smaller diameter than the run pipes.

Zizi is high quality manufacturer of outlet pipe fittings, we offer full size range threadolet according to MSS SP 97 or ASME B16.11, supply common use or special grades as row material. The material could be stainless steel, duplex stainless steel, carbon steel, alloy steel, nickel alloy and copper alloy. We supply dimension range and weight chart of threadolet for customers.

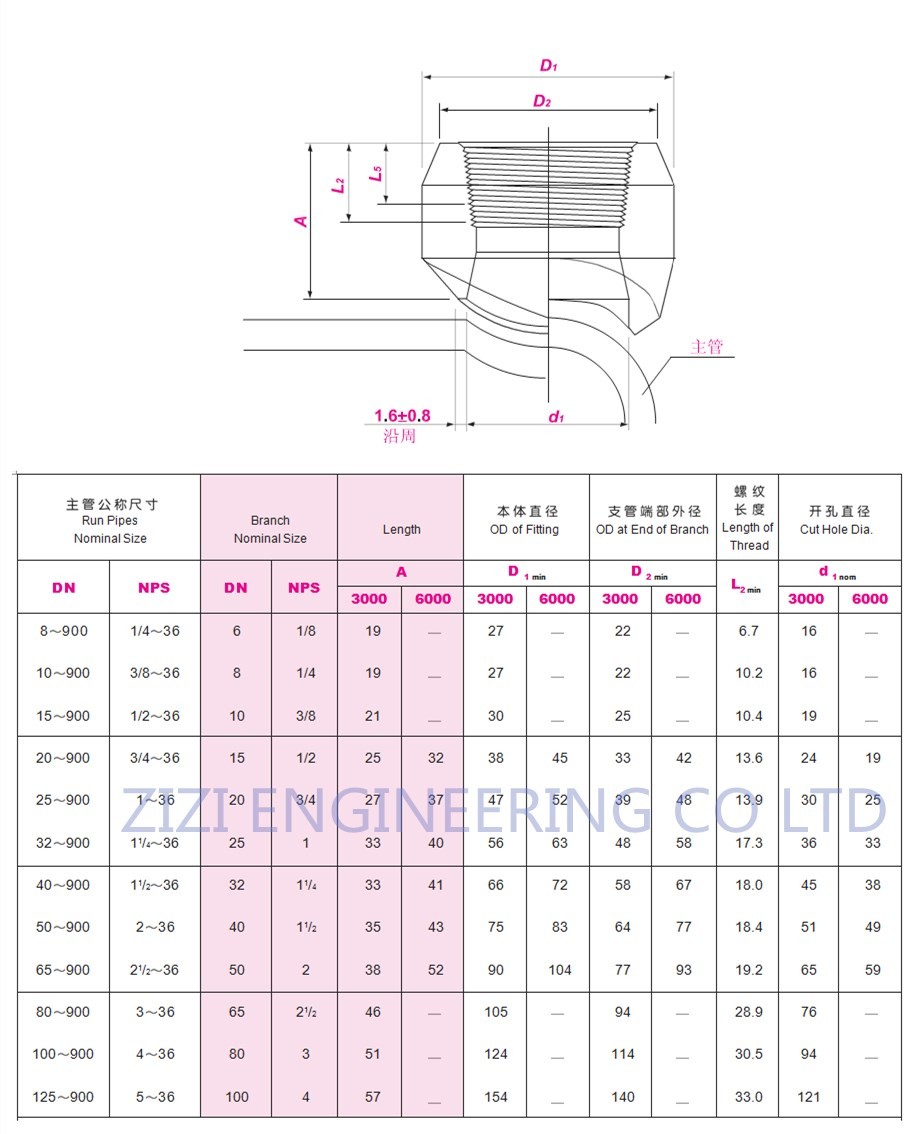

Threadolet Dimensions

ASTM A105 1 / 2" - 4" Olet Pipe Fittings Carbon Steel Threadolet ASME B16.11

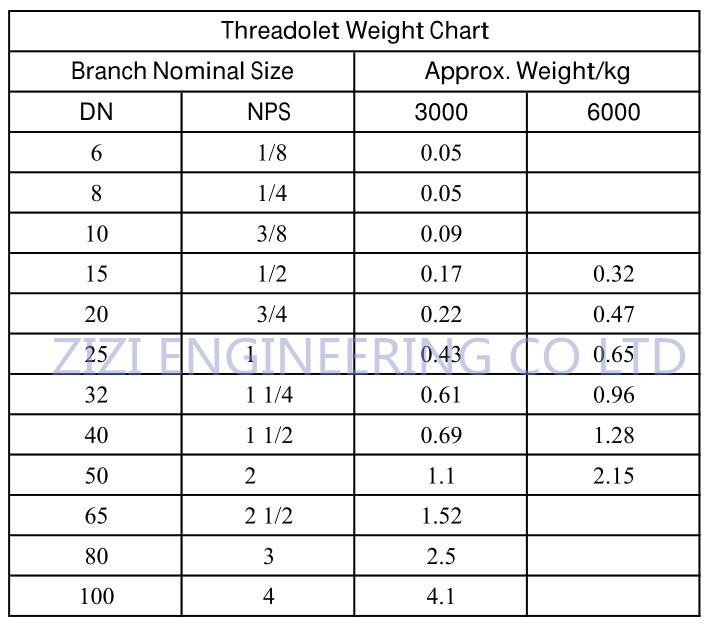

Threadolet Weight Chart

ASTM A105 1 / 2" - 4" Olet Pipe Fittings Carbon Steel Threadolet ASME B16.11

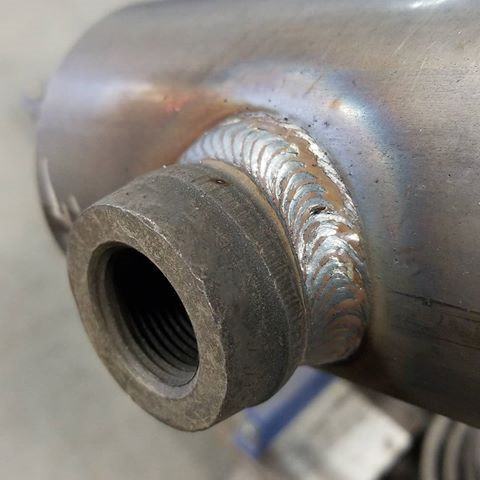

Threadolet Installation

No matter weldolet, sockolet or threadolet, they all connected with main pipes by welding. The different connect method which reflect on their names is the branches connection way. So the threadolet is connected with run pipe by welding, connected with branches by threads.

ASTM A105 1 / 2" - 4" Olet Pipe Fittings Carbon Steel Threadolet ASME B16.11

ASTM A105 Properties

ASTM A105 Chemical Composition

C	Mn	P	S	Si
0.15	0.6-1.0	0.035	0.04	0.1

ASTM A105 Mechanical Properties

Tensile Strength	Yield Strength	Elongation
485 (Mpa)	250 (Mpa)	30 (%)

Supply Range of ASME B16.11 Theadolet

Standard	MSS-SP-97, ASME B16.11
Run Pipes Nominal Sizes	1/4” to 36”, DN8 to DN900
Branch Nominal Size	NPS 1/8 to NPS 4, DN6 to DN100
Thread Type	NPT, BSPP, BSPT, PT, GI
Stainless Steel	ASTM A182 F304/304L/304H, 316/316L/316H, 321, 310/310S, 317,347
Carbon Steel	ASTM A105/A105N, A350 LF2/LF3, A694 F52, F65, F70
Alloy Steel	ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel	ASTM A182 F51, F53, F55, F60
Nickel & Copper Alloy	NICKEL 200,NICKEL 201, MONEL 400, INCONEL825, INCONEL 600, INCONEL 601, INCONEL 625, HASTELLOY C276, C70600, C71500

Delivery Service of Carbon Steel Pipe Fittings

Package

Offer Anti rust oil, plastic film, carton box and wooden cases for carbon steel threadolet.

Delivery Port

Shanghai, Tianjin, Qingdao

Lead Time

For forged fittings usually is within 10 days are ready for delivery

Document

CI, PL, CO, BL, MTC

Quality Assurance of Forged Threaded Fittings

Inspection

In factory inspection, mainly check the surface, marking, dimensions and material quality of products.
Thread fittings should check the threads by professional tools.
Third party inspection: BV, SGS, LR, DNV, ABS and approve inspection certificate.

Certificate

CE, ISO, TEST REPORT
